Light-O-Rama Controllers - ShowTime PC CTB16PC Partially Assembled Package

The CTB16PC is a 16 channel weather resistant light controller that can be part of a multi-controller network.
Each of the 16 independent channels has a number of special effects such as dimming, ramping, twinkle and shimmer.
The CTB16PC is built in a weather resistant PVC case allowing it to be used for your outdoor displays.
No soldering is required.
Minimal assembly required.

You get a fully assembled and tested 30 amp computerized light controller board (using two dedicated 15 amp power feeds) housed in a weather resistant plastic enclosure.
It will take about an hour to assemble the strain relief, clamp the wires in place, screw the strain relief to the enclosure and plug the wires into the card.
You must connect this controller to your personal computer to set the unique Unit ID.
Once the Unit ID is set, this controller is ready to go.
Note: This controller cannot run standalone.

No soldering is required.
You get everything you need to build a 30 amp computerized Light Controller housed in a weather resistant plastic enclosure.

With a few hand tools you can put together this 16 channel controller that works in conjunction with the Light-O-Rama ShowTime software to produced amazing light shows.

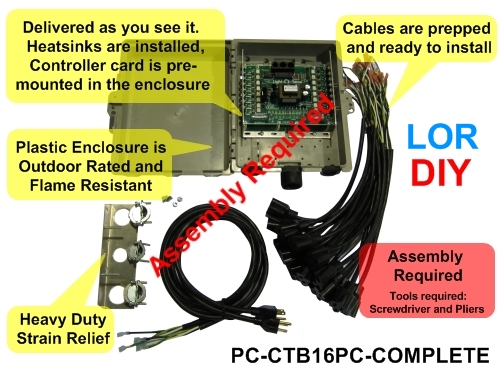

Comes as pictured above.
Heavy duty heatsinks are pre-installed.
NEW: Now shipped with the controller card pre-mounted in the enclosure!
You assemble the strain relief, clamp the wires in place, screw the strain relief to the enclosure and plug the wires into the card.
In an hour (actual time may vary) you will have a 30 amp, 16 channel light controller.

Note: To use this controller you must also purchase Light-O-Rama Sequencing Software, RS-485 Adapter, and CAT5 Cable.

Technical Specs:
Outputs: 16
Maximum Amps: 30
Includes High Power Heatsink
9.5"w x 12"h x 3.5"d.

WARRANTY

• One year limited warranty against defects in materials or workmanship.

What's the difference? We get this question a lot!	shown with covers removed
	ShowTime Pro Series	ShowTime PC series
Commercial grade steel enclosure available with a UL508 industrial rating		no
PVC (plastic) enclosure available	no
Warranty (in years)	2	1
Operate stand-alone if required		no
Can run commands from ShowTime Director or computer(via one of our converters) when connected to Light-O-Rama data network.
Amperage rating design (in amperes)	40 but down rated to 30 for safety	30
Unit ID address setting of each controller	dedicated switches on controller	requires a computer to set
Dedicated On/Off switch inside enclosure		no
Easy access fuses inside enclosure		on circuit board
All standard Light-O-Rama lighting effects
Can operate with any other Light-O-Rama controller on same Light-O-Rama data network
Preferred by professionals		sometimes
Preferred by lighting enthusiasts	sometimes
Dimensions (without electrical pigtails)	10.5"w 11.5"h x 5"d	9.5"w 12"h x 3.5"d
Weight (approximate)	13 pounds	6 pounds
Will it hurt if you drop the enclosure on your foot?		sometimes
