LED Bulb Specs

EnergyStar compliant LED Bulbs from Minions Web dot com

Minions Web Indoor / Outdoor
PAR LED Bulbs Data
All Minions Web LED bulbs are CE certified All Minions Web LED Bulbs are RoHS Compliant -they are both Lead & Mercury Free

How do the Minions Web Ultra-bright all purpose LED Spot light bulbs compare to off the shelf incandescent spot bulbs?

You can compare them to the general incandescent bulbs available from what measurements we could find.

Our actual measurements of some 70 and 100 watt Spot lights on hand yielded surprising results - they measured within 10% of what we consider comparable bulbs.
The one piece of information is that no lighting company wants to declare at what distance the lumens are being measured.
This has led me to believe that the "lumens" cited on most incandescent spot light bulbs available are not remotely accurate.
That "information" is posted in a table below our LED data table.

We have provided 5 distances, and lumens stated on the table are at 1 meter distance.

Please use this table to see the measurements we obtained in bulb testing.
Glean from this data what you may.

All bulbs in this table are 110vAC with an E26 Base (Medium Screw-in) and a 14-22° Beam Angle

Bulb Color Wave
length
Bulb Type Lux  1'  Lux
1 Meter
Lux  6' Lux  25' Lux  40' Lumen/
Sq Ft**
Field
Width
@40'
Throw^ Watts Amps Field
Angle
Test Image
12 LED 5mm
UV 375-395nm E27
Purple 395-410nm E27 106 15       10     0.96 0.009
Blue 470nm E27 530 68       49     0.96 0.009
Green 525nm E27 960 135       89     0.9 0.008
Yellow 590nm E27 260 35       24     1.03 0.009
Orange 605nm E27 460 60       43     1.03 0.009
Red 624nm E27 489 63       45     1.03 0.009
Warm White 4000K E27 827 103       77     0.96 0.009
Cool White 8000K E27 870 108       81     0.96 0.009
18 LED 5mm
UV 375-395nm E27 34 4       3     0.77 0.007
Purple 395-410nm E27 12 2       1     0.77 0.007
Blue 470nm E27 570 75       53     0.83 0.008
Green 525nm E27 580 76       54     0.83 0.008
Yellow 590nm E27 390 50       36     0.9 0.008
Orange 605nm E27 850 105       79     1.03 0.009
Red 624nm E27 660 82       61     0.9 0.008
Warm White 4000K E27 1321 162       123     0.83 0.008
Cool White 8000K E27 1390 170       129     0.83 0.008
36 LED 5 mm
Duo UV 375-410nm PAR20 43 8       4     1.22 0.011
UV 375-395nm PAR20 25 6       2     1.28 0.012
Purple 395-410nm PAR20 65 11       6     1.22 0.011
Blue 470nm PAR20 315 43       29     1.28 0.012
Green 525nm PAR20 541 75       50     1.41 0.013
Yellow 590nm PAR20 395 53       37     1.54 0.014
Orange 605nm PAR20 252 32       23     1.47 0.013
Red 624nm PAR20 475 65       44     1.54 0.014
Warm White 4000K PAR20 1102 135       102     1.67 0.015
Cool White 8000K PAR20 1160 142       108     1.67 0.015
Infrared 840nm PAR20           0     1.73 0.016
50 LED 5 mm
UV 375-395nm PAR30 87 13 5 1 n//a 8 20   2.82 0.026
Purple 395-410nm PAR30           0     0 0.000 -
Blue 470nm PAR30 1820 230 72 5 3 169 25+ 16 2.89 0.026
Green 525nm PAR30 2060 250 70 5 3 191 ~30 18 2.95 0.027
Yellow 590nm PAR30 1030 136 35 3 2 96 20+ 11 3.78 0.034
Orange 605nm PAR30 1310 166 40 3 2 122 20+ 14 2.12 0.019
Red 624nm PAR30 2240 325 60 5 3 208 20+ 18 3.66 0.033
Warm White 4000K PAR30 4028 494 109 8 4 374 25+ 23 3.08 0.028
Cool White 8000K PAR30 4240 520 115 8 4 394 25+ 23 3.08 0.028
72 LED 5mm

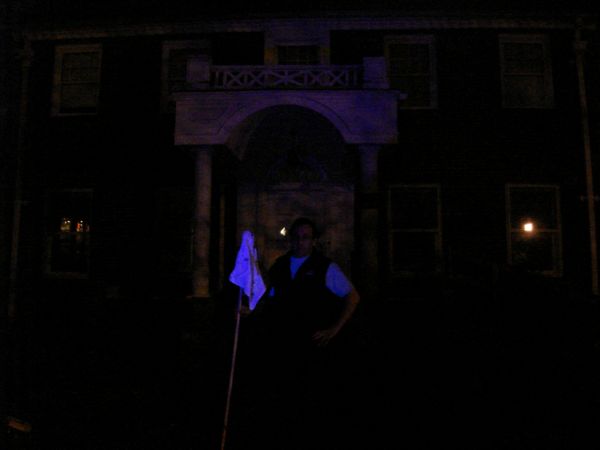

Duo UV 375-410nm PAR38 183 29 7     17 30 4.5 2.76 0.025   Click to enlarge
UV 375-395nm PAR38           0     0 0.000 -

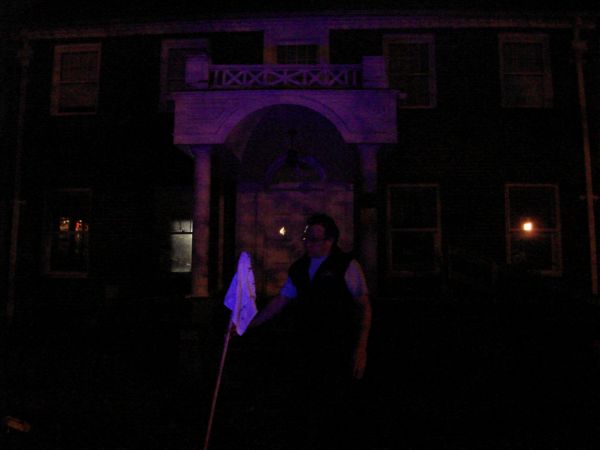

Purple 395-410nm PAR38 408 65 16     38 25+ 8.5 2.89 0.026   Click to enlarge

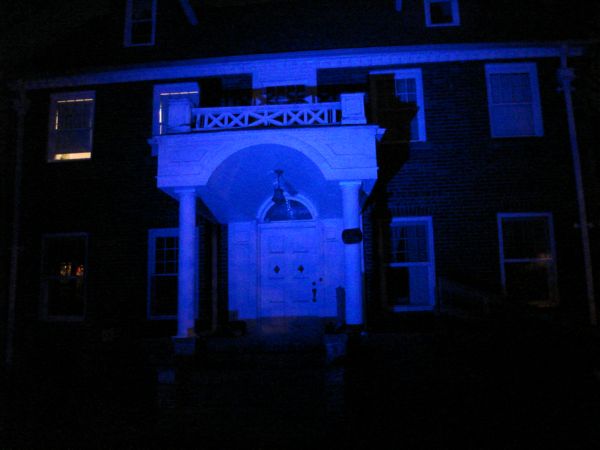

Blue 470nm PAR38 1730 264 56 4 2 161 30+ 15 3.01 0.027   Click to enlarge

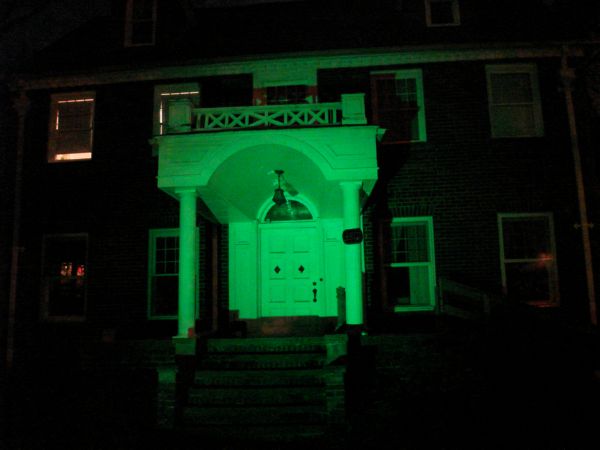

Green 525nm PAR38 3555 520 125 8 5 330 30 23 3.01 0.027   Click to enlarge

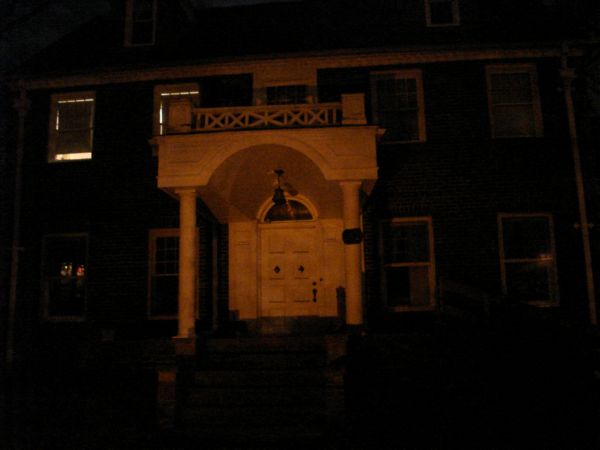

Yellow 590nm PAR38 1140 189 47 4 3 106 25+ 15 3.53 0.032   Click to enlarge

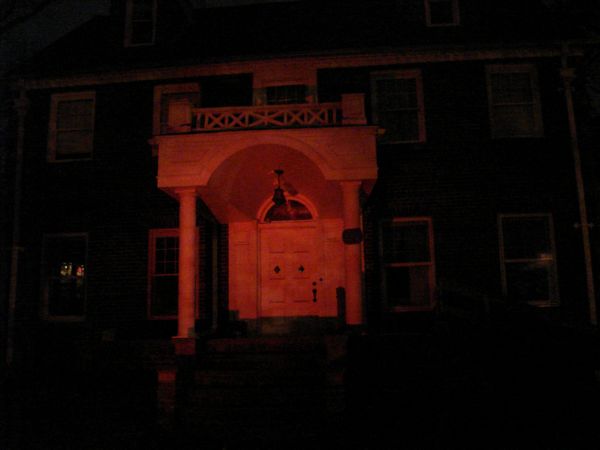

Orange 605nm PAR38 1600 213 60 4 3 149 ~25 16 3.85 0.035   Click to enlarge

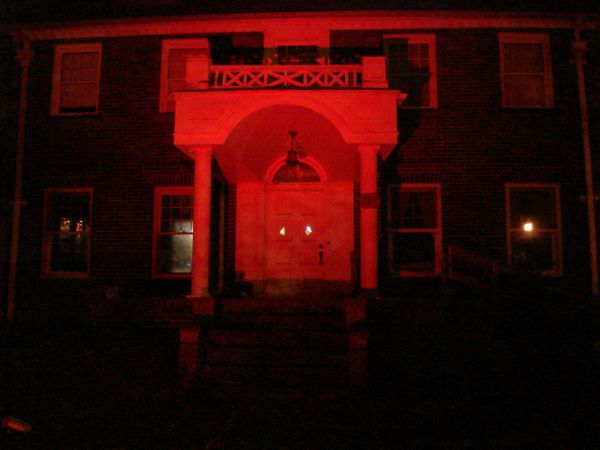

Red 624nm PAR38 2070 293 74 4 3 192 25+ 16 3.72 0.034   Click to enlarge

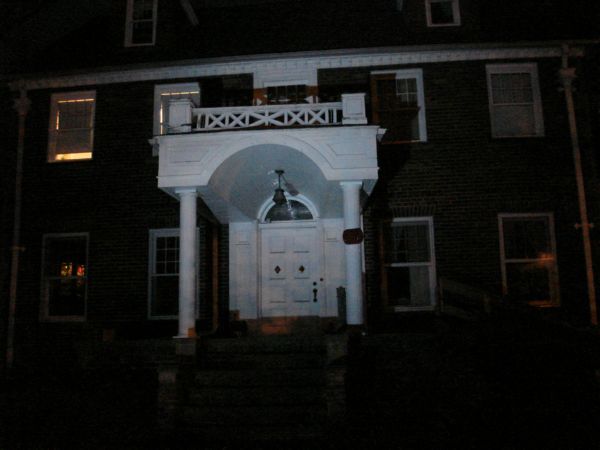

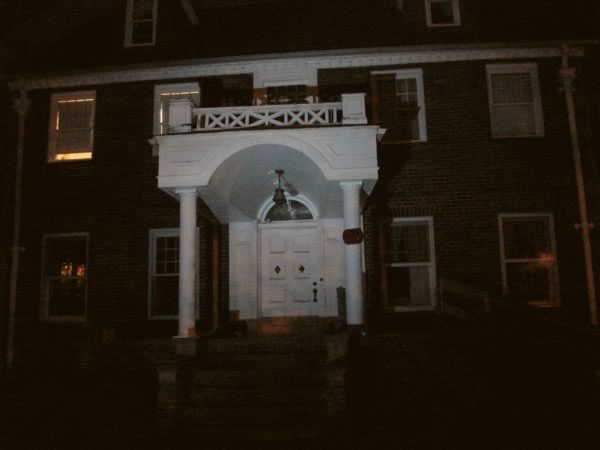

Warm White 4000K PAR38 3880 399 152 5 3 361 30 20 3.08 0.028   Click to enlarge
Cool White 8000K PAR38 4080 340 93 5 3 379 30 26       Click to enlarge
Infrared 840nm PAR38 - - - - - - - - 4.23 0.038
120 LED 5 mm

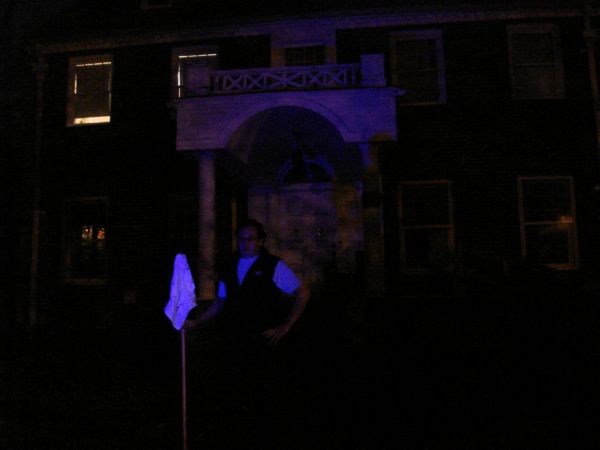

Duo UV 375-410nm PAR38 340 52 11     32 30* 7 5.9 0.054   Click to enlarge

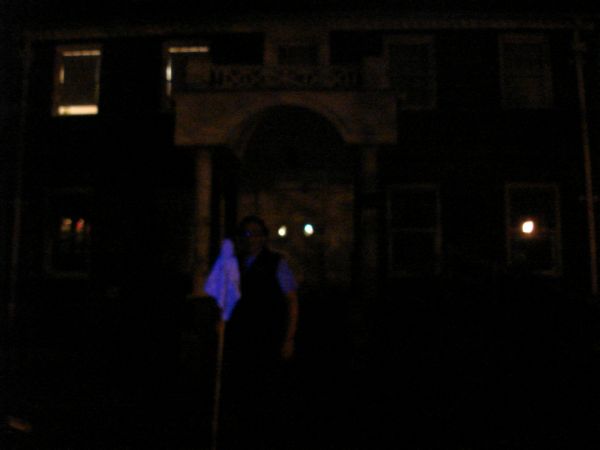

UV 375-395nm PAR38 63 13 3     6 30* 2.5 4.36 0.040   Click to enlarge

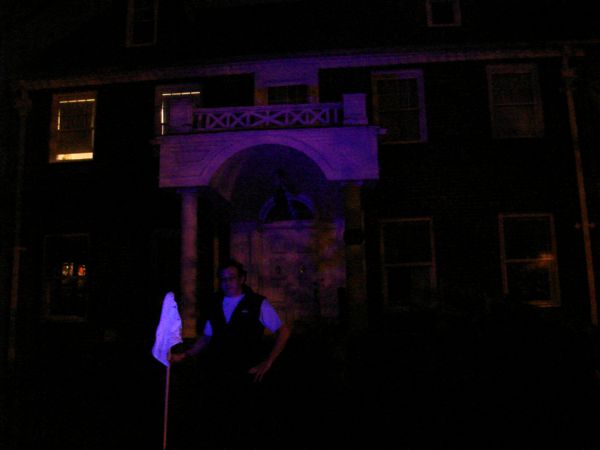

Purple 395-410nm PAR38 228 30 7     21 30* 4.5 5.71 0.052   Click to enlarge

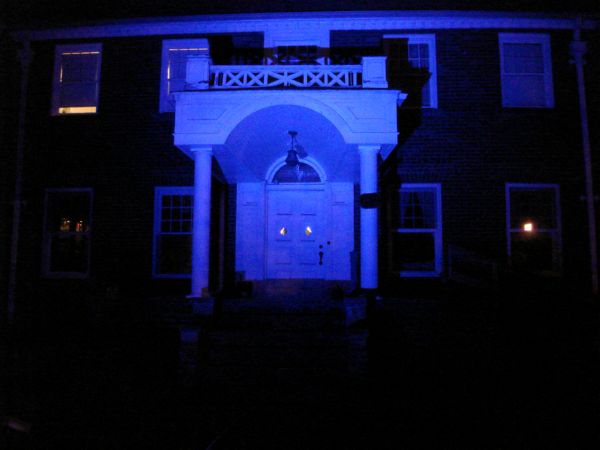

Blue 470nm PAR38 2490 370 95 5 4 231 30+ 19 6.03 0.055   Click to enlarge

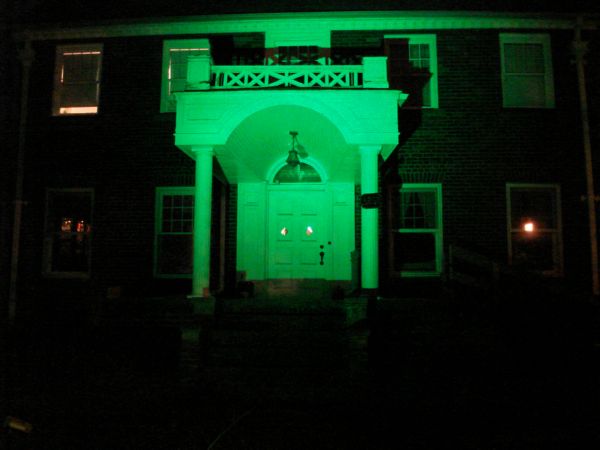

Green 525nm PAR38 5850 865 225 11 6 543 35 26 6.03 0.055   Click to enlarge

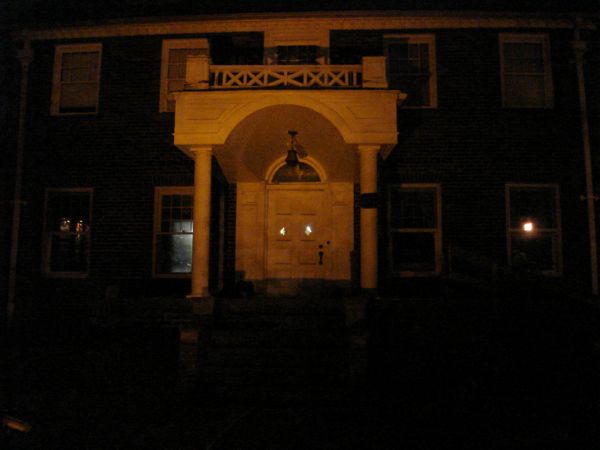

Yellow 590nm PAR38 1580 210 58 4 3 147 30+ 17 7.05 0.064   Click to enlarge

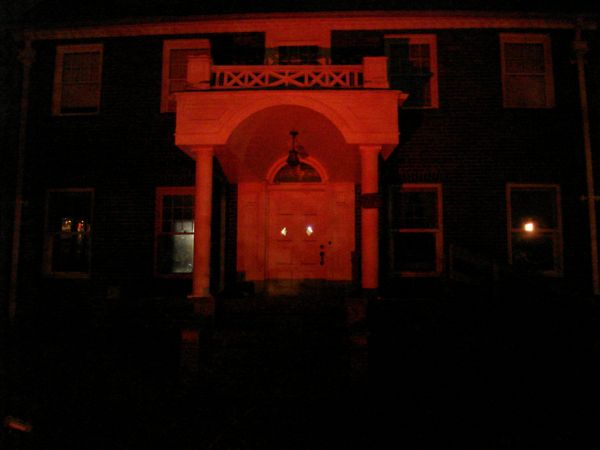

Orange 605nm PAR38 1735 185 50 4 3 161 30+ 16 7.12 0.065   Click to enlarge

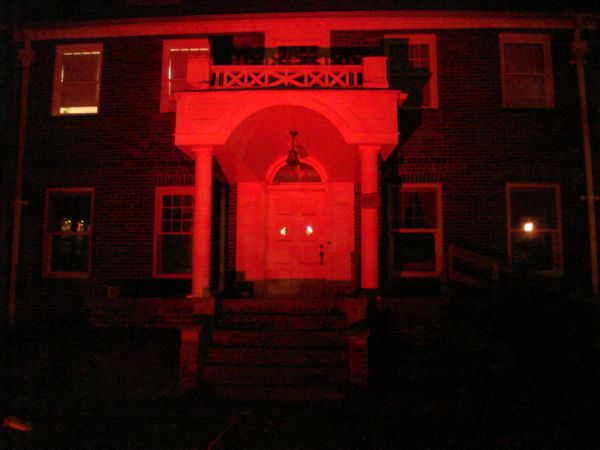

Red 624nm PAR38 3510 488 125 5 4 326 30+ 21 7.12 0.065   Click to enlarge

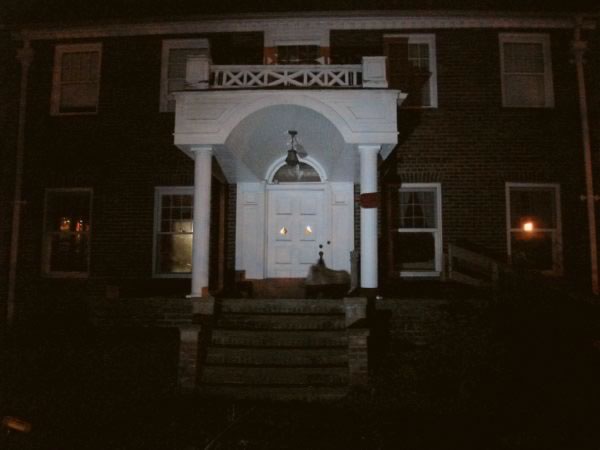

Warm White 4000K PAR38 6650 807.5 237.5 11.4 5.7 617.5     6.16 0.056   Click to enlarge
Cool White 8000K PAR38 7000 850 250 12 6 650 30+ 30 6.16 0.056   Click to enlarge
Infrared 840nm PAR38 - - - - - - - - 8.02 0.073

How was the LED Bulb testing accomplished?

I do not have a highly sophisticated testing rig, a search on the internet puts the only certified LED testing rig at GE.
I used to do software there, wonder if I can go knock on the door and ask to test bulbs!

For the PAR30 and PAR38 bulbs I took a handy dandy extension cord and stake light to the front yard, with a 33 foot tape measure placed the stake so each bulb face would be 25' from the base of my front steps.

The distance from the steps to the front door under my portico (you can see the layout in the 72 & 120 LED bulb pictures) is another 15' for a toal distance of ~40', not accounting for the slight elevation angle.

I then placed a 1 meter/1 yard (flip side) stick at the bulb face and ticked off 1', 1 meter and then measured out to a 6' point, to create the 5 reference points in the table.

Each bulb was then placed in the socket, powered up, and measured with an Model CT-1334A Digital Lux Meter at the 5 points. I additionally measured for 10 lux drop off along the measuring tape (or further back if need be) for the Throw reading.

Next I would measure off the width of the illumination on the house frontage to provide the Field Angle and Beam Width @ 40', since it is a known length of 42' ( I was a civil designer and have a complete CAD rendering of my property).

I did a number of spot reads and averaged them out for each bulb in each distance to get a fairy accurate read on the LEDs

Tidbit - My property has 6 streetlights within 250 of the property centerline that produce an ambient 3 lux read at the stake placement. This produces more additional undesired light than most properties experience. The 72 and 120 LED bulb pictures show how the bulbs at a 40' distance overcome the ambient light.


Halogen Bulb Test Results

The local Home Depot ONLY carries Halogen spots and flood for outdoor use.
These are brighter and extremely hot compared to standard filimant incandescents that I have from past displays.
I hope to acquire more regular incandescents to test with asap.
All the bulbs tested in this table are warm white and Philips brand.

wattage type envelope Lumen Claimed Lumens Impressions
45 Spot par38 260 530 extremely tight beam with little more than a hot spot
50 Spot par20 499 530 extremely narrow, the lumens can only be obtained from a very small spot
75 Spot par30 1090 1000 clear lens eye like hot spot, very tight field
50 Flood par20 109 530 4' wide @ 8', really yellow
50 Flood par30 99 590 beam width looks much more like the LED 120 Spot output
60 Flood par30 271 800 800 lumens my ass, effective flood 3' wide @ 8'
75 Flood par30 283 1050 narrow for a flood, 4' wide @ 8' distance
90 Flood par38 380 1350 odd readings checked 3x - narrower field than the 50 flood par30

How was the Halogen Bulb testing accomplished?

To save time I am at my desk with a lamp on the floor.
Each bulb is placed in the lamp and I measure 1' from the face and take a reading, then another reading at 1 meter.
I also entered some observations regarding field width or other comments as I thought they may be pertinent. Since the Halogen light is very very hot in spots I did not bother to average the readings, I went for the highest reading I could obtain and used it for this data.
It is astounding at how erratic the results are, the LEDs were muchg easier to predict by comparison.

Conclusions

People have asked repeatedly for a 1:1 relationship of LED Bulbs to Incandescent.
It just is not possible - LEDs are overall dimmer than Incadescents but in dark environments such as halloween displays and night time holiday yard displays serve the purpose extremly well, as they are.
I recommend this breakdown:
120 LED 100 - 150 watt
70 LED 70 - 90 watt
50 LED 45 - 60 watt
36 LED 30 - 45 watt
18 LED 15 - 20 watt
12 LED 5 - 15 watt
Keep in mind LEDS will be on averge 25% less intense than Incandescents.

Errata

Basic measuring unit:
lumen, which is an energy of 1/683 joules per second, measured at a wavelength of 555 nanometers.

Illumination of a surface by a point source:
lux = lumens per square meter.

^Throw = The distance at which Lux drops below 10.

*We could not accurately access the actual Field Width of the UV bulbs simply due to time constraints - we have provided an estimate based on the beam angle meeting the same criteria of the similar bulbs in each array size.

**For Lumen/SQ. Meter - use the Lux @ 1' measure.
